ARCH 121: BUILDING INFORMATION I

Building Information Modeling (BIM) uses parametric building modeling software to create intelligent, three-dimensional (3D) computer models of buildings and their components. We created a complete set of construction documents for a commercial building complete with floor plans, building sections, elevations, details, schedules, and 3D views using BIM techniques. A typical office building with a Front-dominant curtain wall enables light to illuminate the reception area.

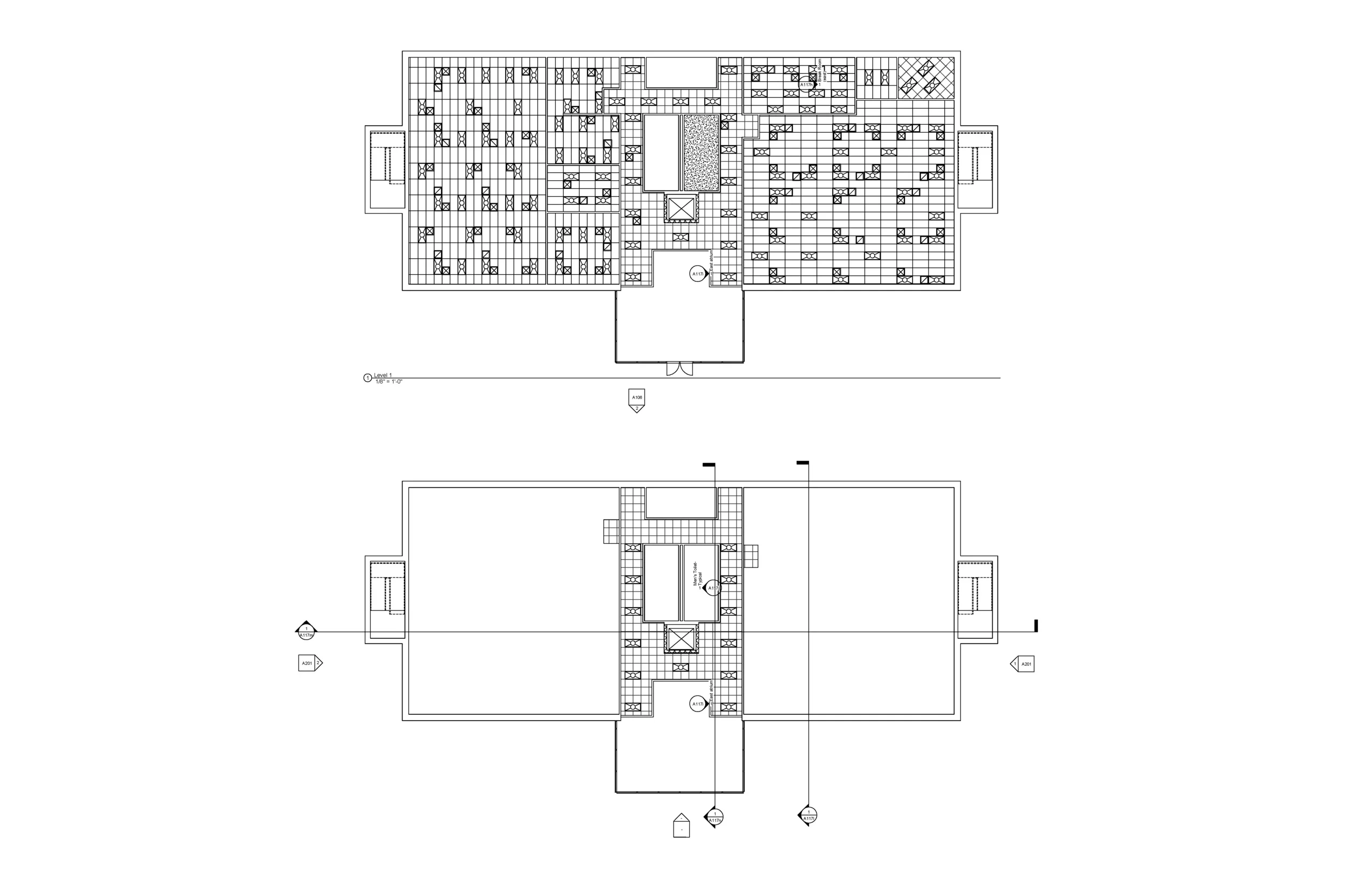

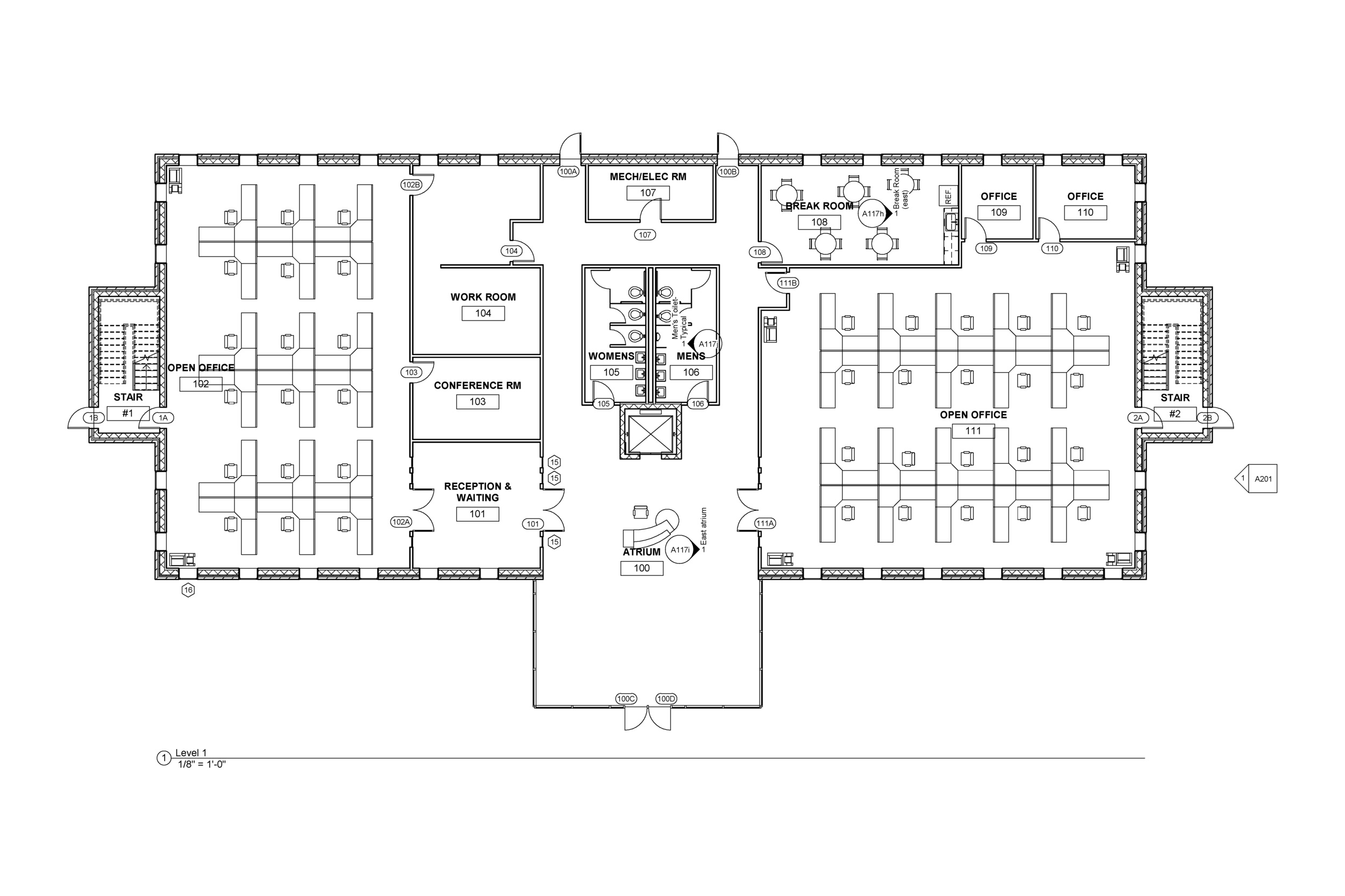

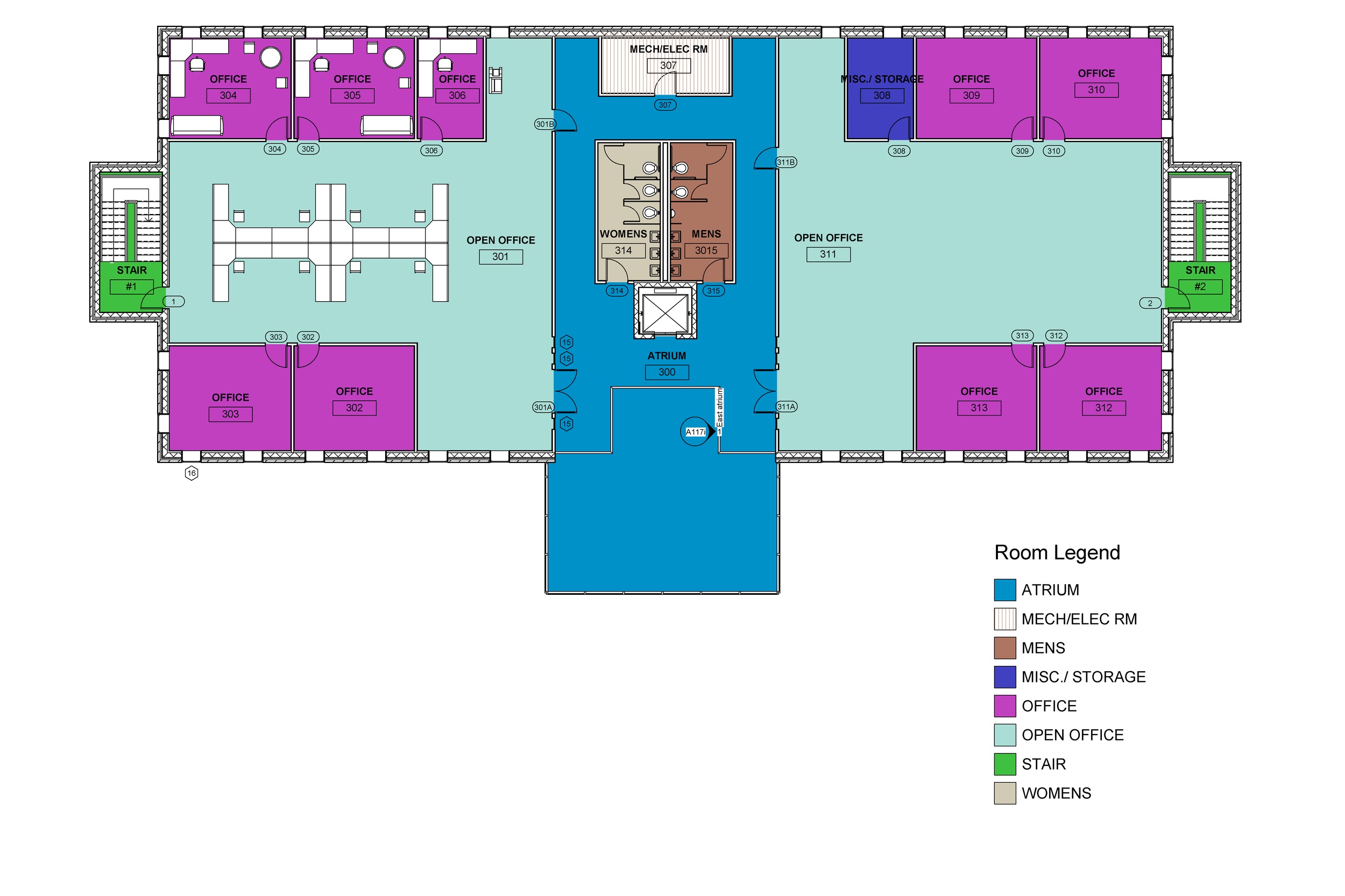

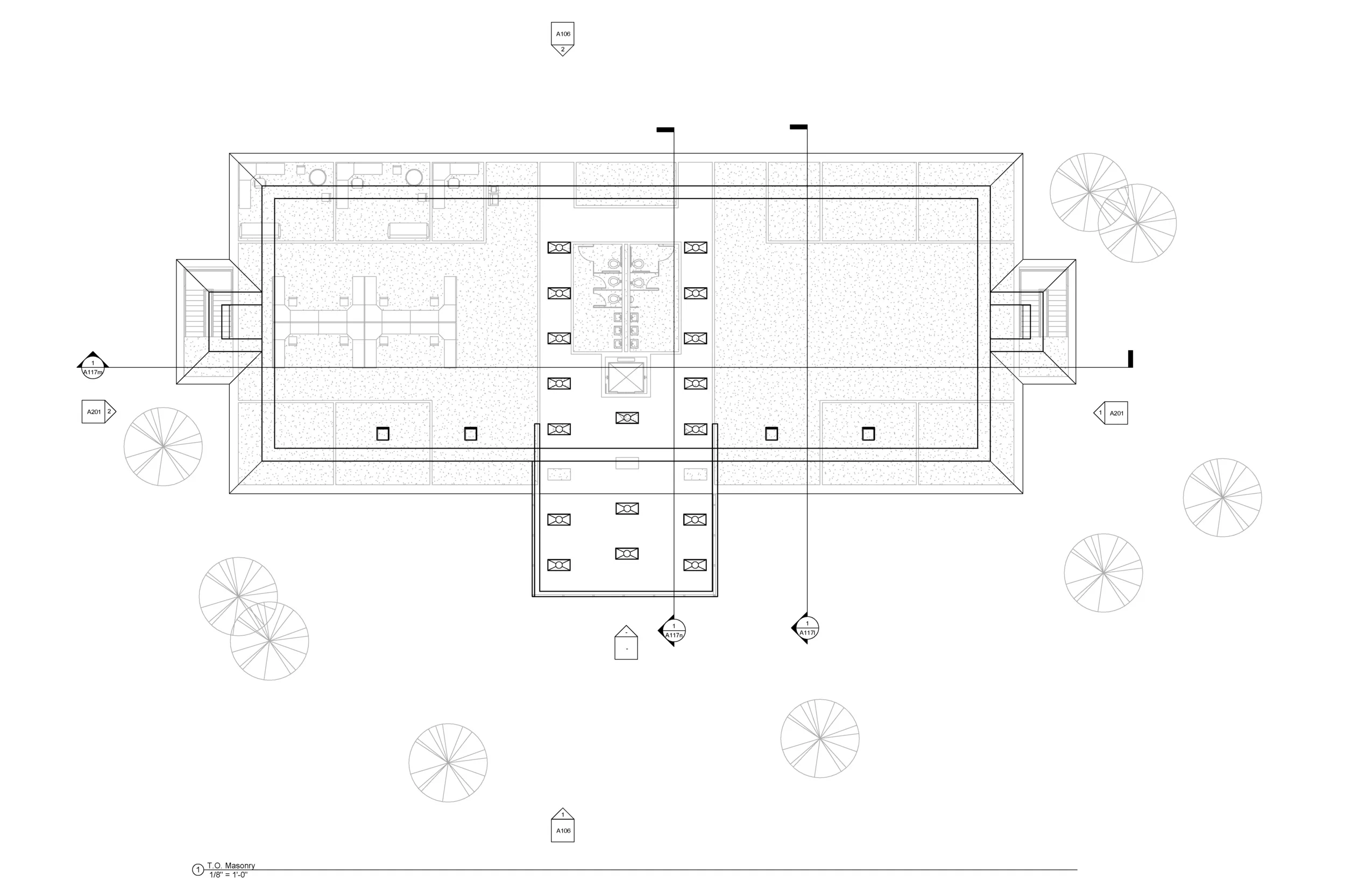

Plans

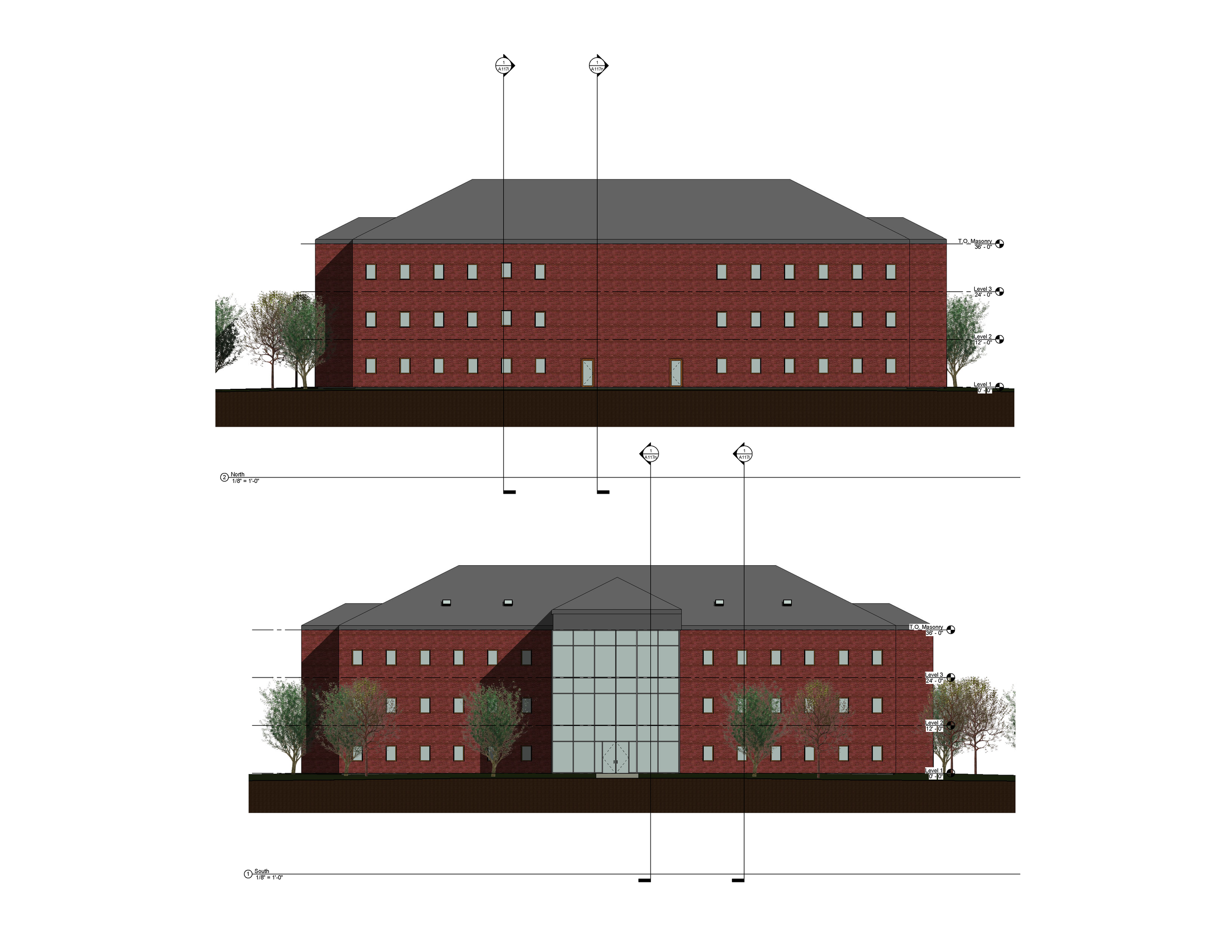

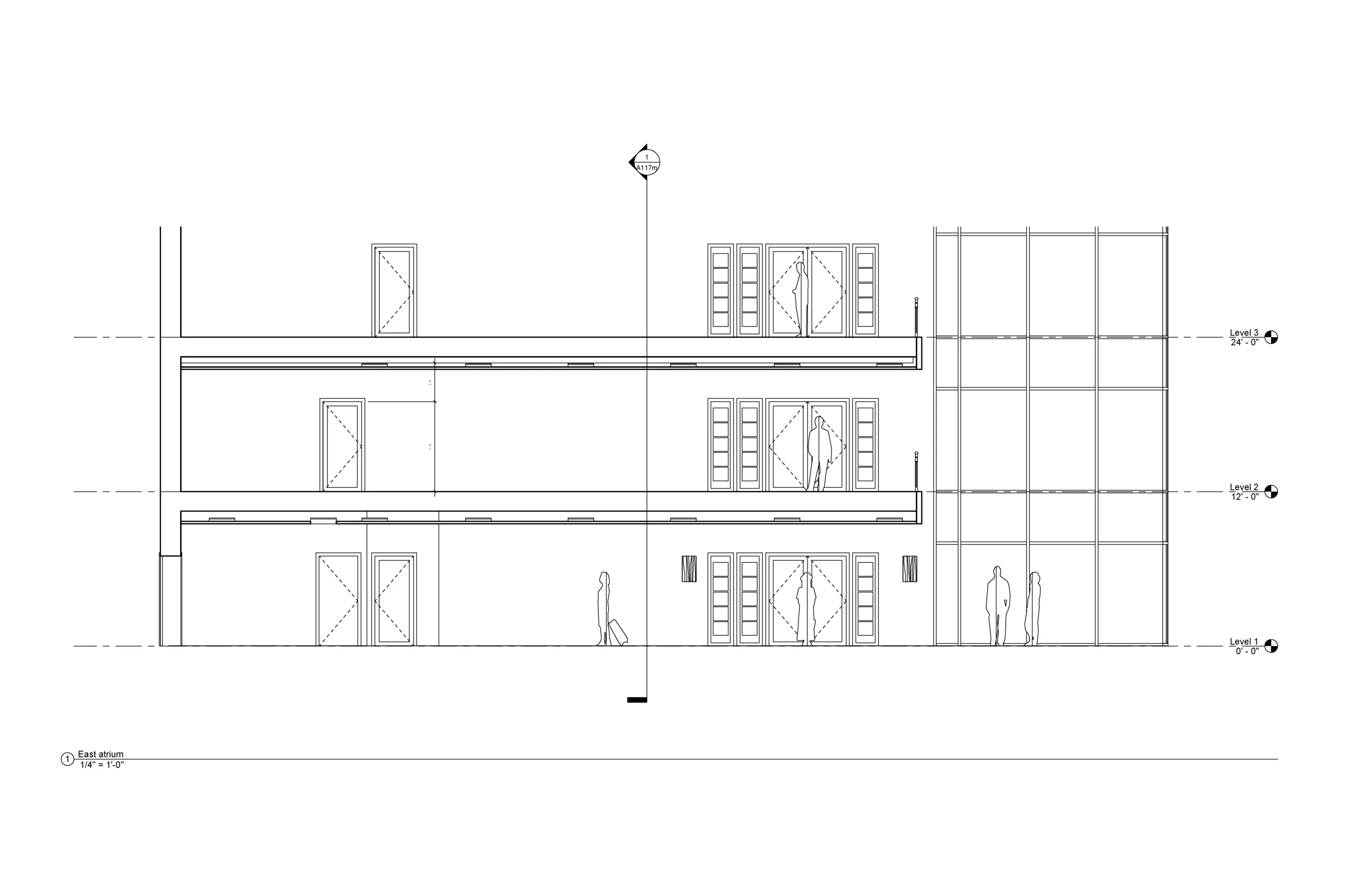

elevations

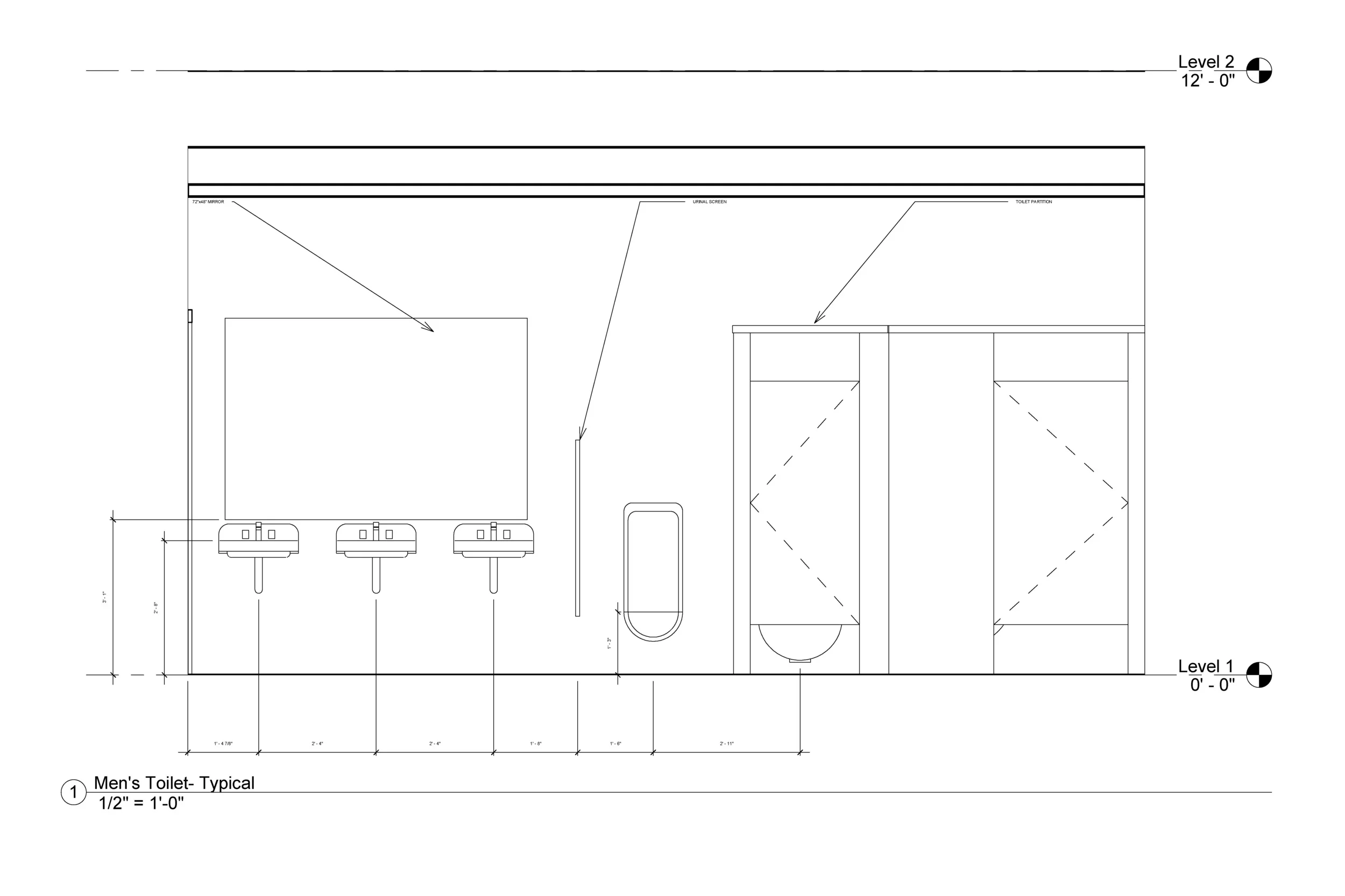

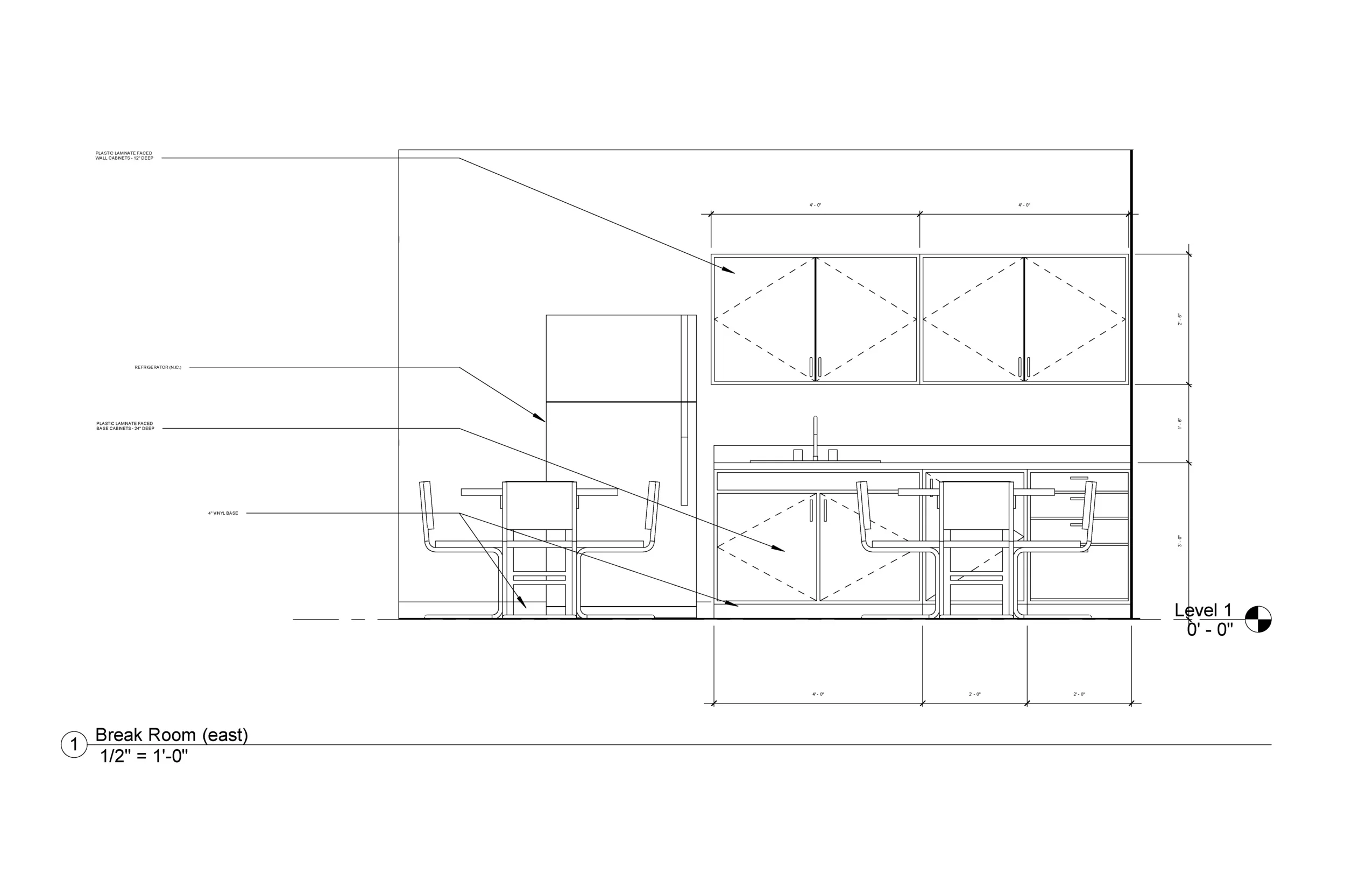

furniture & utilities detail

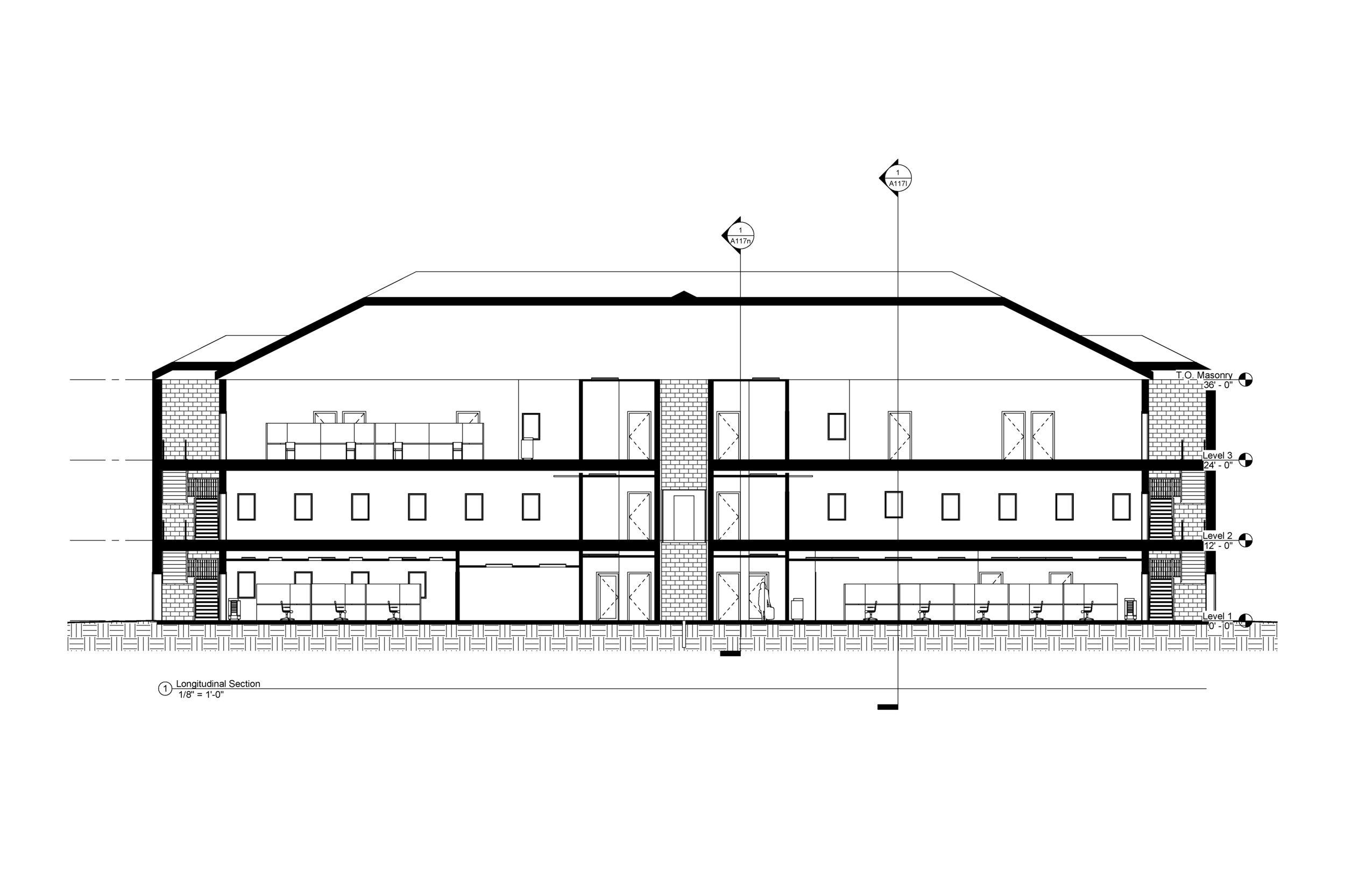

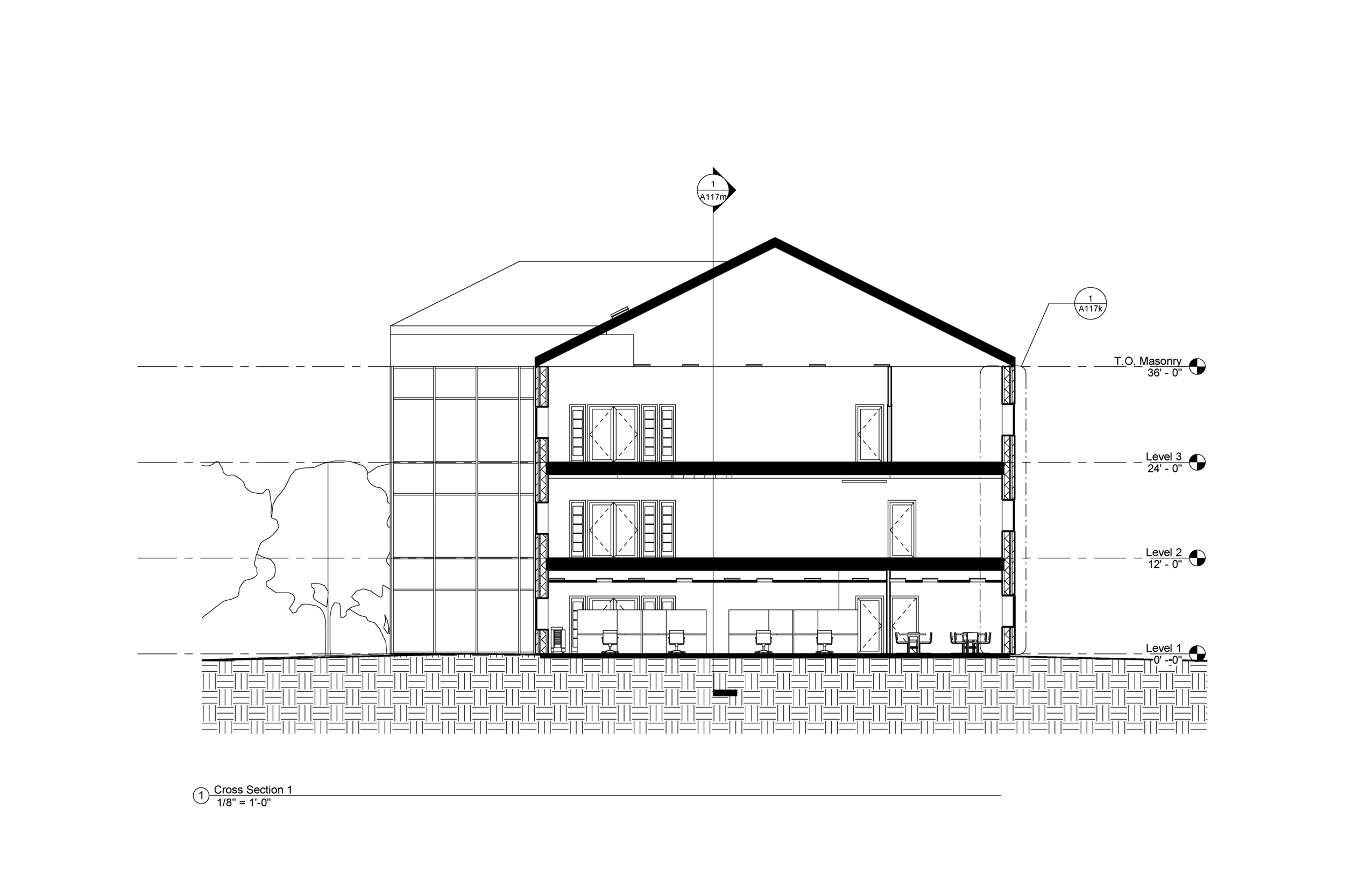

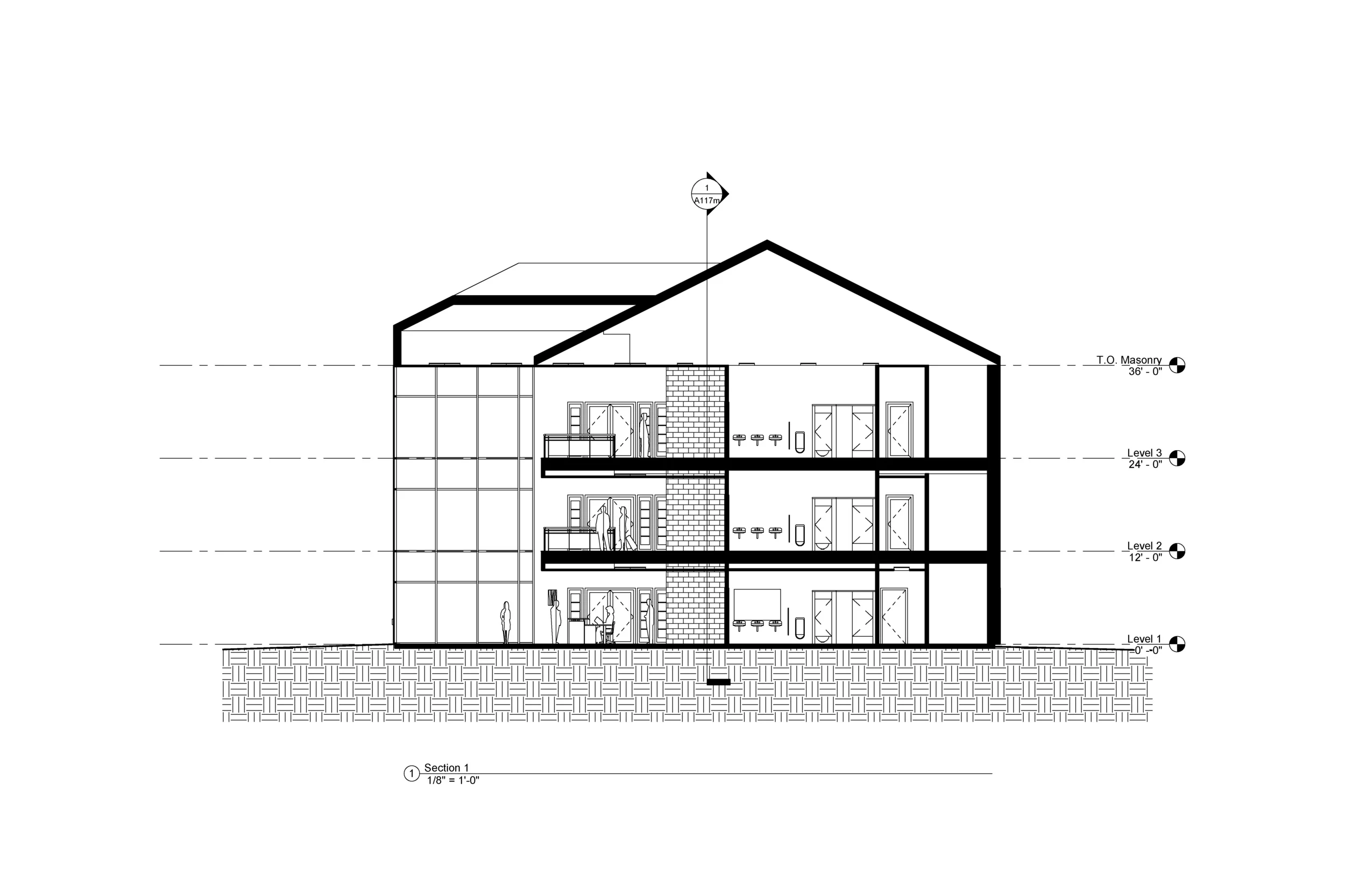

sections

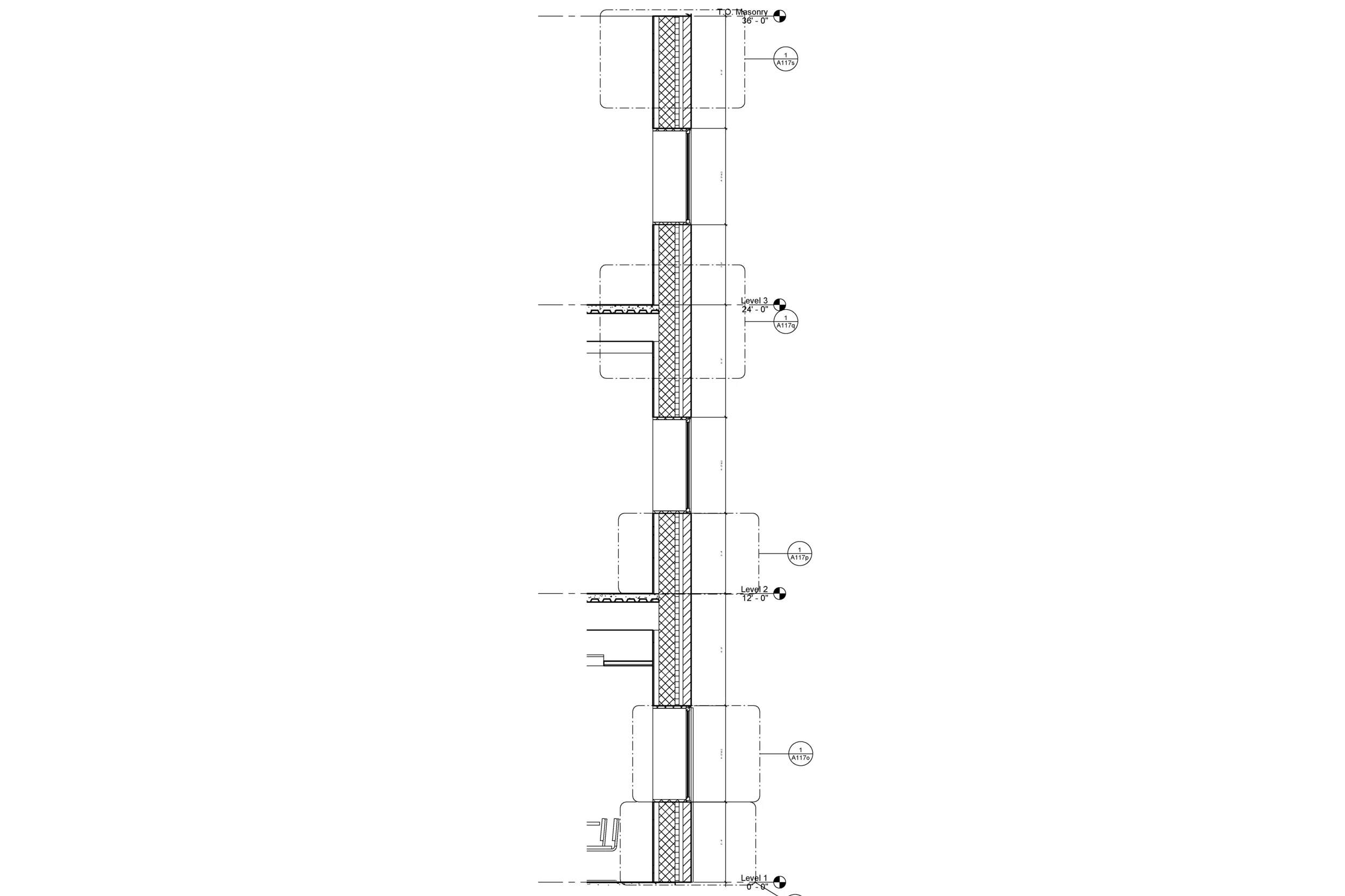

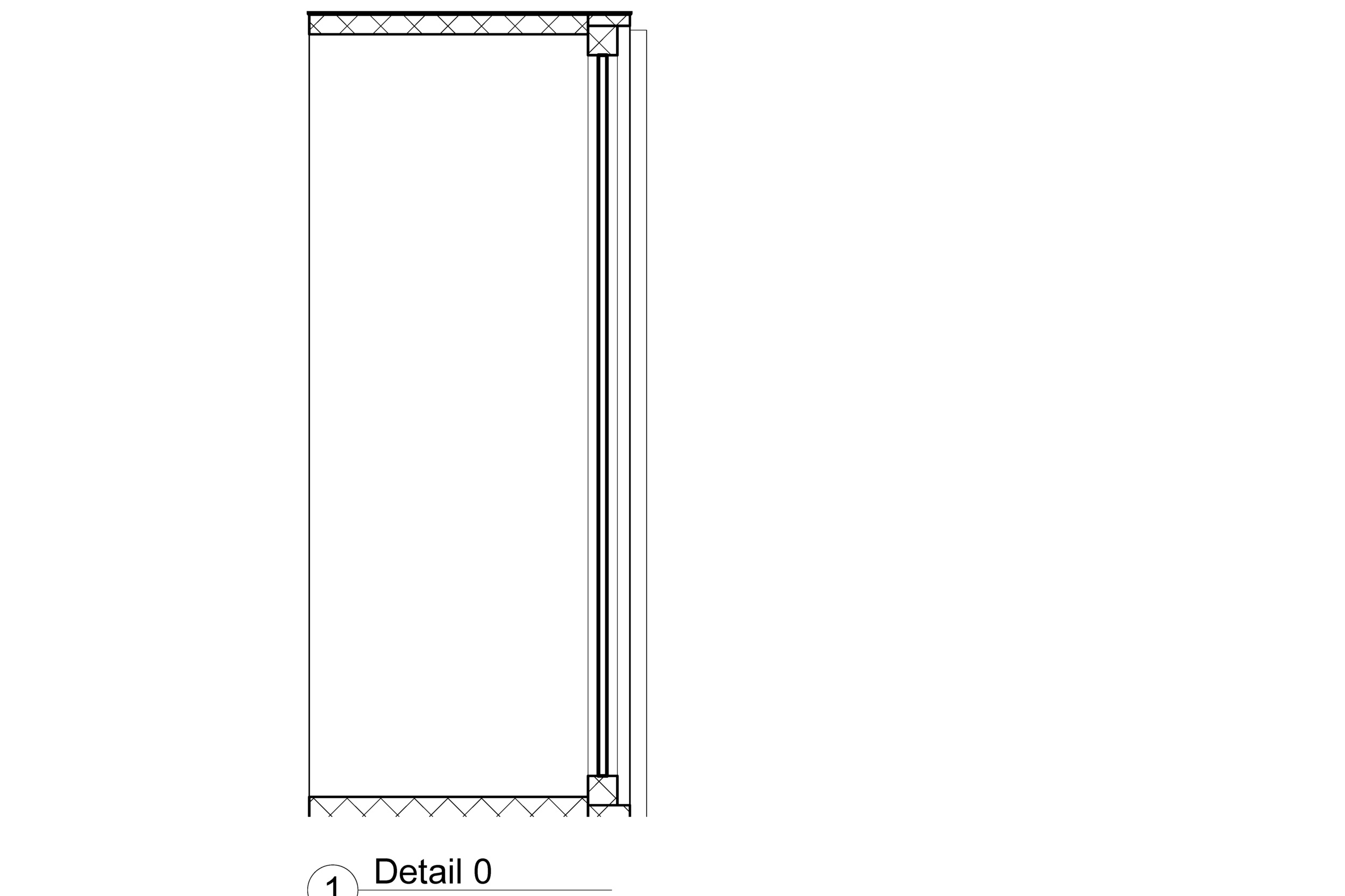

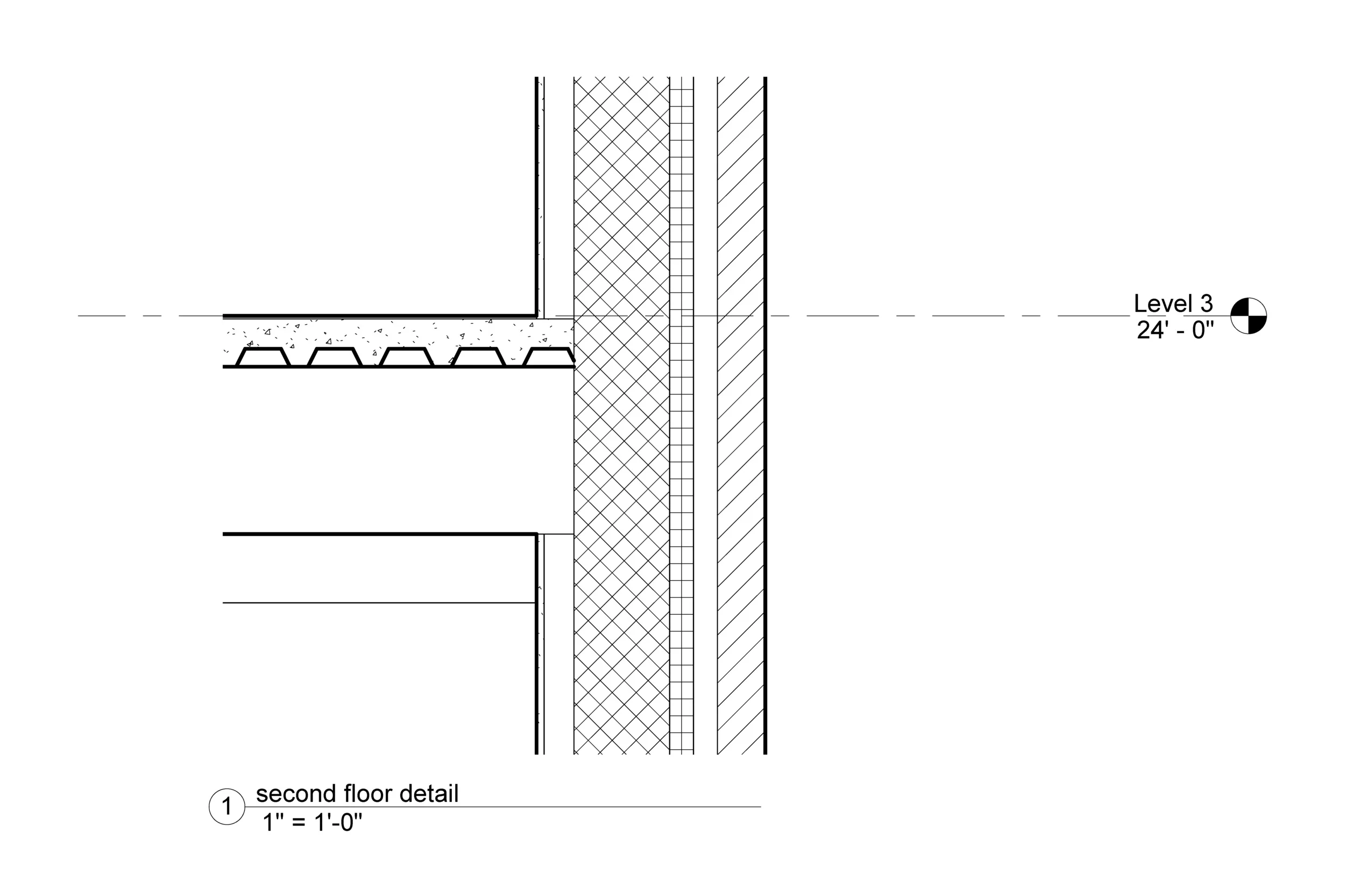

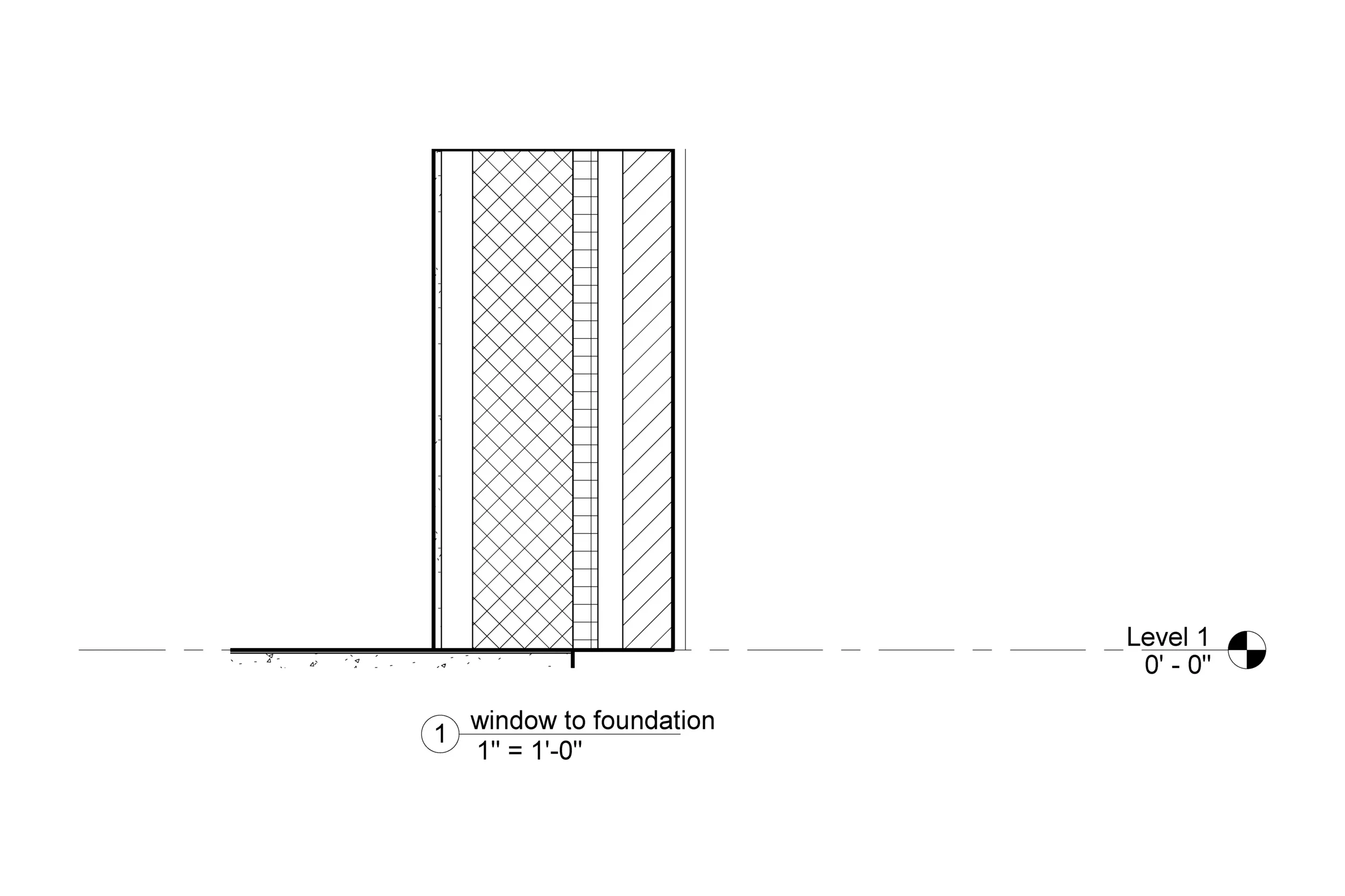

Building Details

renderings
